Powder Sprayer machine can solve the sticking problem during tablet production
How to solve the problem of sticking during tablet production?

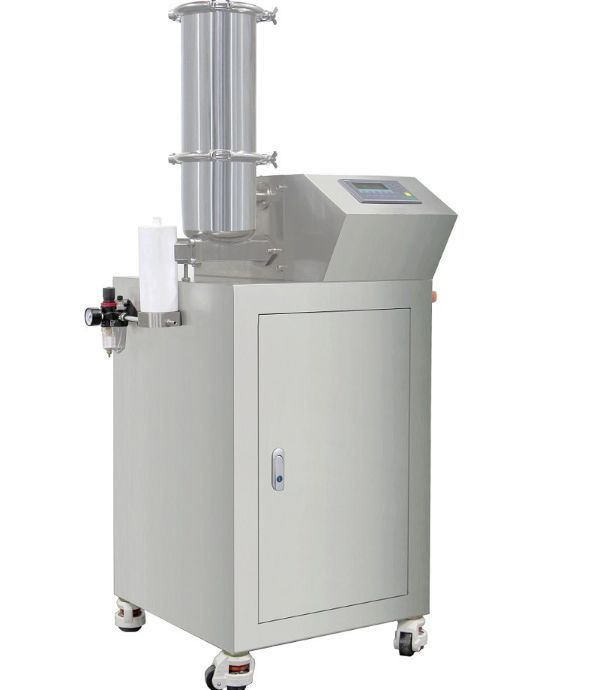

This anti-tablet-sticking powder sprayer is used to spray the anti-sticking lubricant powder, like magnesium stearate, onto the punch heads (both upper and lower punch heads), forming a very thin powder film on the punch head surface which will prevent the sticking material like sugar, effervescent material and catalytic material from sticking onto the punches.
2.How to operate this anti-tablet-sticking powder sprayer to prevent tablet sticking?
Add the anti-tablet-sticking material, like magnesium, into the hopper, and the blade inside the hopper will blending the powder continuously, at the same time, the screw shaft will transfer the material into the mixing container little by little. The compressed air will go inside the mixing container and get mixed together with the powder, and then mixed air-powder go along the pipe and will be spayed no to the punches through the spay head.
3.Main features of this anti-tablet-sticking powder spraying machine：
1. The anti-sticking powder sprayer's speed and sprayed powder quantity is adjustable by controlling the compressed air pressure and the rotation speed of the screw shaft;
2. This anti-sticking powder spraying machine is very easy to operate and is compatible to different tablet press machines;
3. Different spray heads can be customized according to tablet press machine model;
4. This anti-tablet-sticking powder spraying machine's nozzle has two slots, and one of the slots is for the compressed air to spray the powder onto the punch heads, and the other slot is for the dust collector to take away the extra powder from the punches so as to keep space as clean as possible;
5. The contact parts on this anti-tablet-sticking powder sparyer is 316L stainless steel, and the non-metal parts are white POM safe material, which can meet FDA standard.
6. This anti-sticking powder sprayer machine's surface is very smooth and very easy to be cleaned;
4. Tchnique Parameters:
Model | CF-1 |
Voltage | 380v/3P/(3A socket) |
Power kw | 0.2KW |
Overall size mm | 710x512x1430 |
Required Air pressure | 0-0.3MPa |
Weight | 100kg |

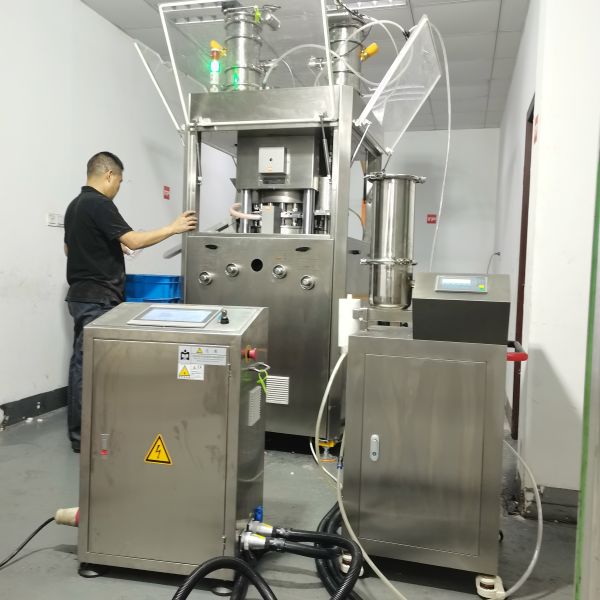

The right hand side machine is the physical image of the anti-tablet-sticking powder spraying machine under testing.
